Vapor Recovery Pipe Control Valve

Name: Vapor Recovery Pipe Control Valve
Brand: Shanghai Cowell Machinery Co., Ltd.
SKU: YJ7506
Price: 90.00 USD
Availability: InStock

Détails de produit

Lieu d'origine: Chine

Nom de marque: COWELL

Certification: CNex

Numéro de modèle: YJ7506

Conditions de paiement et d'expédition

Quantité de commande min: 1

Détails d'emballage: Carton dur

Délai de livraison: 3-7 jours ouvrables

Conditions de paiement: T/T

Obtenez le meilleur prix

Contact maintenant

Caractéristiques

Description

Caractéristiques

Mettre en évidence:
                                                                                                                                                                                                                                                                                                                    Vapor recovery valve, Vapor gas Pipe control valve, Side Plate Valve


Pression de service:	6 bars	Méthode de fonctionnement:	Pneumatique
Pression de l'air requise:	4-8Bar	Connexion:	Bride

Pression de service:	6 bars
Méthode de fonctionnement:	Pneumatique
Pression de l'air requise:	4-8Bar
Connexion:	Bride

Description

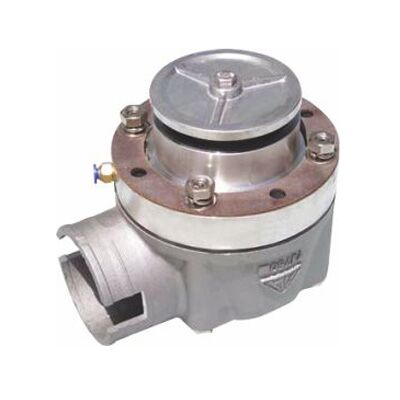

Vapor Recovery Pipe Control Valve

Description

Vapor recovery pipe control valve is also called side plate valve. It is installed on

the top of the tank truck and back of the vapor recovery pipe. While loading or unloading,

the gas goes out through vapor recovery pipe control valve, it ensures the internal and external

pressure of the tank maintain balance. The exit direction should be from back down 45 degree.

Characteristics

Aluminum alloy die-cast sturcture, anodized treatment
Greater spring tension, tigher seal.
Higher rated flow, lower presure drop.
Easy installation
Available with all TTMA flange
Pneumatic control on the opening and closing
Meets EN13083 standard, flange meets the TTMA standard.

Material

Body: Aluminum alloy

Filter: Stainless Steel

Spring: Stainless Steel

Seal: NBR

Technical Specification
Model	YJ7506
Working pressure	0.6 Mpa
Air pressure required	0.4-0.8 Mpa
Temperature range	-20~70℃
Connection mode	Flange
Operating mode	Pneumatic
Medium	Diesel, Gasoline, Kersene
